OMICRON offers a wide range of testing tools for Power Utility Communication in substations

OMICRON has been involved in developments for testing IEC 61850 communication for more than 15 years.

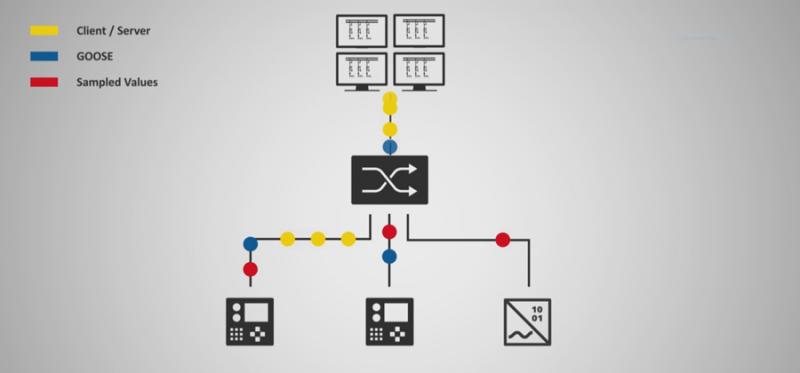

IEC 61850 describes different kinds of communication. The classic SCADA communication is realized as peer-to-peer communication between the client (SCADA system) and the server (IED Intelligent Electronic Device). For fast inter-device communication, the multicast communication via IEC 61850 GOOSE (Generic Object Oriented Substation Event) was developed. Here, protection and automation information can be distributed easily. The same mechanism was adapted to the transmission of measured sampled values between Merging Units and IEDs.

Starting with testing solutions making protection testing possible with GOOSE and Sampled Values (SV), OMICRON became the market leader for testing solutions in accordance with IEC 61850. With IEDScout, an easy to use test client was developed and is being continuously improved. Latest versions allow simulation of different IEDs and also work with IEC 61850 setting groups.

When the test module IEC 61850 client/server was released with Test Universe 3.10, the SCADA communication became a part of protection testing. IEC 61850 Reports issued by the IED could be used for testing as well as any value in the IED's data model. Additionally, setting the test related modes also became possible during protection testing. With Test Universe 3.20 Sampled Values according to IEC 61869-9 became testable, the product range for protection testing was complete.

DANEO 400 is the hybrid signal analyzer for power utility automation systems. The measurement system records and analyses all conventional signals (voltages, currents, hard wired binary status signals) and messages on the communication network in a substation. It measures signals from both of these worlds and can provide information to assess their proper coordination. The device keeps track of what is going on in the substation by obtaining information on the operational status and communication. IEC 61850 communication verification based on SCL information is possible as well as live observation of measurement values and IEC 61850 messages. Measurement of propagation delays (for example, for GOOSE and SV) and supervision of the system supports the user for different applications.

Join us on the route to IEC 61850

The North American IEC 61850 Tutorial & Workshop - being held May 22 - 23, 2018 at the OMICRON Academy in Houston - will focus on the engineering and commissioning of IEC 61850 in automation, control and protection of electrical power systems. It will highlight practical implementation aspects of an IEC 61850 based system.

See the complete agenda and learn how to register here.

DANEO 400: Measurement, recording and analysis of all signals in PAC systems	Powerful analysis with DANEO Control 4.00	OMICRON test solutions provide comprehensive signal assessment in IEC 61850 environments
