Support challenges associated with aging and obsolete Remote Terminal Units (RTUs), combined with built-in cybersecurity and expanded functionality in modern RTU designs, are accelerating utility efforts to replace legacy hardware. The increasingly critical role of the substation RTU, notably in bulk and transmission substations, underscores the importance of ease of use, high performance, interoperability and scalability. The experience of a major U.S. utility in upgrading their legacy RTUs is described in this article.

“When we began to look at replacing our RTUs, our oldest terminals had been in use for more than 20 years,” said one engineer at a major SW US utility.

“Because of all that is involved in replacing our RTUs, we had been hesitant to initiate a search for a replacement system but when our vendor discontinued the type of platform that we utilize, we had to make a change and it became an opportunity to really consider our long-term needs.”

Key implementation considerations

The utility initiated its RTU replacement search by issuing a Request for Information (RFI), followed by a Request for Proposal (RFP) to the top five vendors that most closely matched their requirements. ‘Ease of use’ was heavily weighted.

For this utility, ease of use meant five things:

1. How easily the new RTUs could be configured to meet specific utility needs
2. The ease of installation and integration with existing hardware and systems
3. How easily field engineering and support staff could be trained
4. Quality of supporting documentation
5. How easily the system could be maintained

“In an RTU replacement project, you are not just replacing terminals but impacting everything around it,” said the engineer. “It’s the RTU, the chassis components, the power supply, the I/O and the cabling. You have to know all of it, and so, there’s a lot of training that is required with a project of this scope.”

As a result, ease of use and training were key factors in overall vendor selection. Because of the complexity of the legacy platform (due to the number of connections, amount of hardware, as well as software and logic-building nuances), the utility was concerned it would require extensive training for any new engineer or designer. They did not want to risk having team members unprepared because they were overwhelmed by a new system.


Credit: NovaTech


“Historically, it can take a new technician or engineer two to three years to truly learn a platform well enough to go out on-site on their own,” the engineer explained. “Since we have a six-month rotational engineering program, we really needed the ability to effectively and quickly train our team in RTU set up and configuration with all the necessary documentation and customer support to be successful going forward.”

Because this utility has a large RTU fleet, ease of maintenance, particularly for its software and firmware, was also rated highly. “Live firmware updates, security patches for new vulnerabilities and feature upgrades to a live system are extremely important, but these can be cumbersome to execute,” the engineer said. This resulted in the utility’s review of each vendor’s firmware history as part of their RTU evaluation process to gauge what they could expect in the future.

Form factor also played a role in assessing overall ease of use. Older substations may not have been built with the capacity to expand in the future. Older legacy RTUs are also heavily hardwired, sometimes requiring half to a full day in cutover time.

“Everybody is trying to look for a form factor that is similar to what they already have,” said the engineer, “The reality is that what you are switching over to will likely not need as much wiring as your legacy RTUs. What is desirable is to be as plug-and-play as possible so you can reduce the amount of cutover time to the new RTUs. Our goal was to get operations back up and running as soon as possible.”

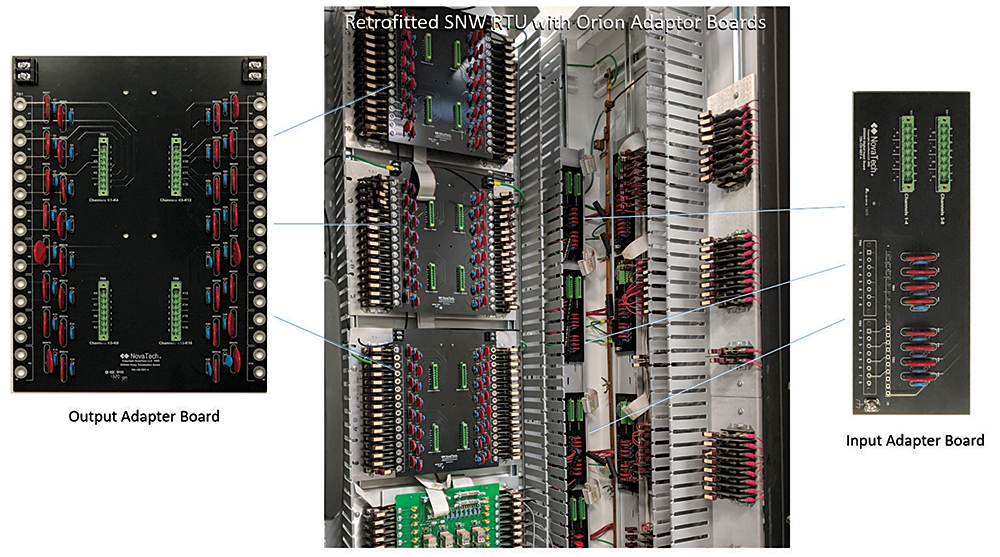

NovaTech: Automation Adapter Board for Legacy Systems Northwest Input and Output Cards
(click to enlarge)


Selection of a replacement RTU system

From the five vendors participating in the RFP and evaluation process, the utility chose an automation platform for the RTU and HMI replacement portion of the RFP.

Before the upgrade, the utility legacy configuration included a customized HMI in every transmission and distribution substation. While the Alarm pages made it easy for technicians to identify events in real-time, the annunciator graphics program was cumbersome to edit and build new pages. Further, the legacy HMI used a database separate from the RTU database, increasing overall configuration efforts. A better design was needed.

“One of the features that we like about the RTU [selected] is the ability to build a page in minutes and then test and get the page working extremely quickly – usually within an hour,” explained the engineer. “Even our most experienced engineers were pretty impressed.”

Credit: NovaTech


Configuration of the RTU, including the I/O system, the Alarm Tile Annunciator, Math & Logic routines and IED data access, is accomplished through a license-free tool. This eliminates most configuration efforts by providing pre-configured pick lists for over 250 commonly applied intelligent electronic devices (IEDs).

The utility’s need for future operability and scalability are also addressed by the platform, which is offered in a range of models for pole top applications, distribution substation applications and transmission substation applications. All models are provided with identical firmware and configured with the same tool. Moving to a larger or smaller platform is a matter of transferring the configuration and editing a few hardware-specific parameters. In addition, new protocols (e.g. IEC 61850, ICCP, etc.) and software options (Email, IEC 61131, etc.) are modular and can be added easily, in many instances, without requiring a firmware upgrade.

Getting it right

The challenging tasks of keeping the data flowing reliably between the RTU system and the utility enterprise is now complicated with aging and obsolete infrastructure. The engineer concluded, “Planning for our future power needs through the replacement of legacy RTU systems in our utilities enables us to continue to play our part.”
