Implementing the DHS's Lessons Learned to Secure Grid Systems

Modern advancements in grid systems enable marked improvements in efficiency, production, reliability, and safety, all through increased use of “smart” assets and digital communications. However, this has led to a dependency on communication technology that is seemingly at odds with the ever increasing pressure to enhance cybersecurity in critical infrastructure. Even though much of T&D infrastructure is not explicitly subject to NERC CIP, these systems are vulnerable, and a target, as evidenced by the recent cyberattack on the power grid in Ukraine¹.

To better balance the need for communication and security in OT networks, such as power substations, and to determine how best to secure them, it’s important to recognize the reasons behind each of their connections. The two primary reasons that organizations provide data paths into or out of their grid networks are:

To provide information to remote users outside the OT network (production data, SIEM, files, historians, monitoring/maintenance information, etc.)
or
To allow for remote command and control by users outside the OT network (error remediation, system adjustments, etc.)

To this end, the US Department of Homeland Security, in conjunction with the FBI and NSA, studied the attack in Ukraine and released recommended best practices² that any organization can use to help secure their ICS communications. Considering much of the same architecture, converters and systems in use in the Ukrainian power grid are currently in use in the US, American operators would be wise to take the lessons learned by the DHS in that attack.

Map and identify all external connections within the OT network architecture
Until you have accurately mapped the network, there is no way of assuring that all points of entry into the OT network are secured, including connections to other networks within your organization. Therefore it is vital to take the time to thoroughly assess, map, and understand the literal ins and outs of your OT network, whether it is performed internally or by a respected third party. This mapping often proves incredibly useful not just for securing ICS communications, but also for any number of cybersecurity or operational projects you may consider.
Reduce the attack surface of your OT network
No matter what the purpose or number of authorized users, it’s very important to recognize that each external connection is a potential attack vector for cyberthreats both into and out of your OT network. In order to reduce the attack surface of the OT network, you must first reduce the number of connections to an as-needed or as-authorized basis only.

The DHS recommends that organizations, “Isolate ICS networks from any untrusted networks, especially the Internet. Lock down all unused ports. Turn off all unused services. Only allow real-time connectivity to external networks if there is a defined business requirement or control function.”

As evidenced by the Ukraine attack, where grid systems had to be reset manually, it also may not be advisable to remove all manual controls in place of a completely automated system. If they had not had the manual controls, some systems may have been rendered completely inoperable, with no way to recover them.

Further, the DHS suggests the logical use of network segmentation to restrict and further control communication paths. “This can stop adversaries from expanding their access, while letting the normal system communications continue to operate. Enclaving limits possible damage, as compromised systems cannot be used to reach and contaminate systems in other enclaves. Containment provided by enclaving also makes incident cleanup significantly less costly.”

Consolidating, limiting, or eliminating any unnecessary external connections and services makes it easier to monitor and defend those fewer remaining points of entry into (and exit from) your OT network. Segmenting your networks can also cut off malware proliferation before it finds its way throughout your organization.
If any of the remaining external connections are for monitoring purposes only, convert them to one-way connections
Many times it is thought that the only way to perform remote monitoring is to allow remote access into the substation network to gather data for monitoring. In a disconnected architecture, service personnel may have to make a trip out to each substation to gather the data. However pushing or replicating data (historians, databases, or other monitoring data) out of the remote substation to the IT network has proven to be a secure way of getting data into the hands of end-users, without the need for a trip to the remote location to retrieve the data.

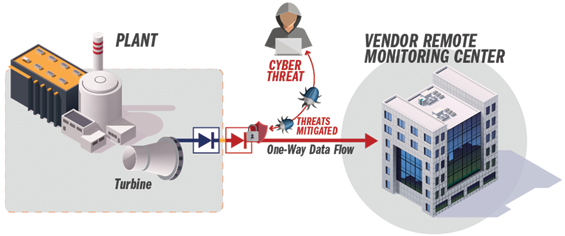

Figure 1. One-way connections for remote monitoring without remote access

Again the DHS recommends “If one-way communication can accomplish a task, use optical separation (“data diode”). … Where possible, implement ‘monitoring only’ access enforced by data diodes.” Data diodes are one-way transfer devices that allow operational data to exit the organization for monitoring or use by a remote user, without opening a potential entry point or attack vector into the OT network.
If data transfers into the OT network are required (software updates, patches, etc.), convert as many as possible to one-way connections
Despite the desire to lock down the network and keep all threats out, data files, usually in the form of a software patch or update from a vendor, often need to be transferred into OT systems. With a locked down network, this is typically achieved with some kind of portable media (thumb drive, laptop, etc.). However, this runs the significant risk of infecting the network when something other than the software update exists on the media. As the DHS notes, “ICS-CERT responded to a Stuxnet infection at a power generation facility. The root cause of the infection was a vendor laptop.”

The DHS recommends that organizations, “Get updates from authenticated vendor sites. Validate the authenticity of downloads. Insist that vendors digitally sign updates, and/ or publish hashes via an out-of-bound communications path, and use these to authenticate. Don’t load updates from unverified sources.”

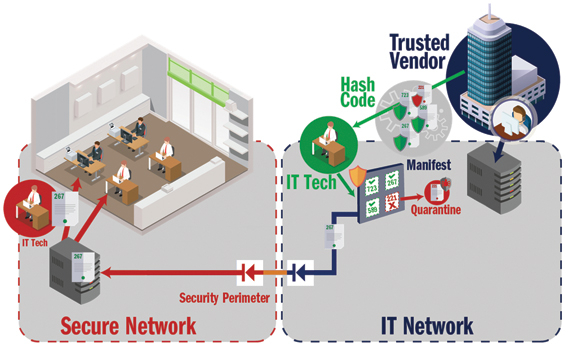

Figure 2. Using one-way connections for data transfers into the OT network

Data diodes can simplify this process for secure inbound transfers by utilizing a manifest and hash code verification to ensure the correct and unmodified file is transferred, including matching the file provided by the vendor on their website or portal. Any file or software that doesn’t appear on the manifest or have a matching hash code is placed in quarantine and is never transferred to the OT network.
Lock down any remaining two-way connections with defense in depth
Most likely, some business or support operations are going to require a two-way external connection. Whether it’s for remote command and control, error remediation, or some other critical purpose, it’s not always possible to eliminate two-way external connections completely, but it’s vital that these remaining connections be heavily controlled.

“Limit any accesses that remain,” says the DHS. “Some adversaries are effective at gaining remote access into control systems, finding obscure access vectors, even ‘hidden back doors’ intentionally created by system operators. Remove such accesses wherever possible, especially modems as these are fundamentally insecure. … If bidirectional communication is necessary, then use a single open port over a restricted network path.” This can be accomplished through a highly secured firewall, or a specialized bilateral data diode implementation, using one data diode for each direction in and out of the network.

In addition, like NERC, the DHS advises against any kind of persistent connections to grid systems, especially from third parties (or the Internet) – “Do not allow remote persistent vendor connections into the control network.”

Bottom line, make sure all external connections are limited in capability, restricted in their paths, and if possible, only exist for a limited amount of time.

Defense in Depth
As part of a layered, “defense in depth” cybersecurity strategy for grid systems, a variety of tools are employed, from role-based access controls, multi-factor authentication, whitelisting, and more. Beyond these baseline tools, the two major transfer technologies used to control access points within OT networks, firewalls (software-based) and data diodes (hardware-based) provide the strongest means to secure ICS communications. Yet it’s important to point out that the fundamental differences, and reasons for using both of these tools, either together or separately, in different situations, to increase the security of your ICS systems.

Software solutions, such as firewalls, are highly versatile cybersecurity tools that can be augmented with a number of security information and event management (SIEM) capabilities, from intrusion detection to deep packet inspection. However, they are also inherently vulnerable to configuration changes, bugs, and they will always require regular updates (or replacement) to stop new and emerging threats.

Hardware-enforced solutions utilize physical components to prevent access to secured networks. For instance, data diodes contain specialized circuitry that only allows data to flow in one direction. The sending circuit is incapable of receiving data, and the receiving circuit is incapable of sending data. For this reason, hardware-based transfer solutions cannot be hacked, and when used to transfer data out of an OT network, cannot be used as a threat vector back into the OT network.

These fundamental differences don’t necessarily have much of an impact in environments where cybersecurity is less important, but they have a big impact when it comes to critical or sensitive networks. For example, data diodes are used in US military and intelligence cross domain deployments, to transfer data between networks of different security levels, while software solutions cannot be used in these cases, as they are simply not secure enough. On the other hand, well configured firewalls can be useful to secure a vital two-way connection, or used in conjunction with a data diode solution.

Keep in Mind
So in summary, the DHS advises that organizations reduce the number of connections to grid systems, use hardware-enforced one-way transfers where possible to limit exposure, anticipate one-way transfers may have to be made into and out of grid systems based on business needs, and for those two-way connections that cannot be eliminated, limit their capability, their communication paths, and the amount of time they are connected.

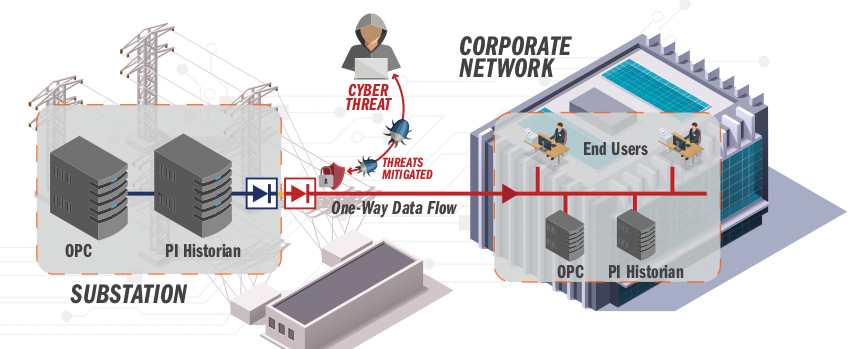

Figure 3. A secured substation network architecture
(click to enlarge)

While defending the perimeter may have fallen out of vogue recently in favor of intrusion detection, advanced biometric authentication, and other measures, keeping intruders out is still one of the best methods to prevent damage to or hijacking of critical systems. Following these five concrete steps from the DHS can help to dramatically improve the cybersecurity of grid systems with minimal disruption to normal business operations. Those that may have considered data diodes years ago may have found them “out of their league” or prohibitively expensive. However, with recent advances in technology and the corresponding dramatic decreases in cost, data diodes are now actually more accessible and widely distributed than ever and are being used every day in a variety of industries and applications. For more information on data diodes, visit www.owlcti.com.
